Introduction

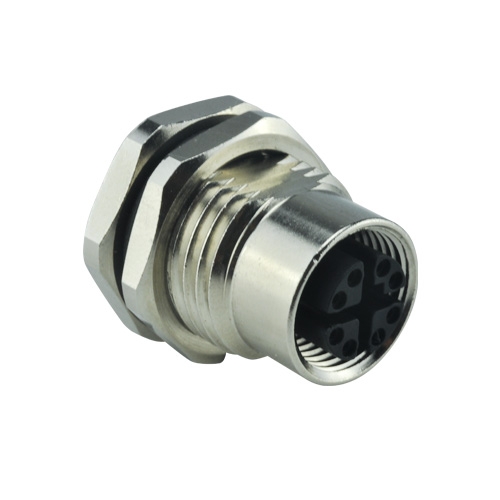

M12 X-Coded Connectors and Cable Assemblies are designed for transmission technology according to CAT6A and 500 MHz/10 Gigabit, and are standardized to IEC 61076-2-109. Though small in size, these M12 connectors feature 4 shielded pairs for reliable high speed data transfer and constructed using industrial grade materials for use in harsh environments.

Features

• Rated voltage: 50V AC/60V DC per IEC 61076-2-109
• Current rating: 500 mA at 40°C per IEC 61076-2-109
• Contact resistance: < 15 mΩ
• Insulation resistance ≥10⁸ Ω
• Transmission properties: 10 Gigabit Ethernet CAT6 per ISO IEC 11801
• Surge voltage category: II
• Degree of protection: IP 67,in mated condition per IEC 60529
• Temperature range: -40°C to +85°C
