Wieson launches DisplayPort 1.4 HBR 3 Cable for 8K high-resolution application

  •  POST DATE : 2019-06-17

According to the analyst group ResearchandMarkets , the global display panel market was valued at USD $128.73 billion in 2018, and is expected to reach USD $165 billion by 2024, registering a CAGR of 4.2% during the forecast period (2019-2024), and the global 8K Technology market accounted for USD $2.05 billion in 2017 and is expected to reach USD $68.13 billion by 2026 growing at a CAGR of 47.6%.

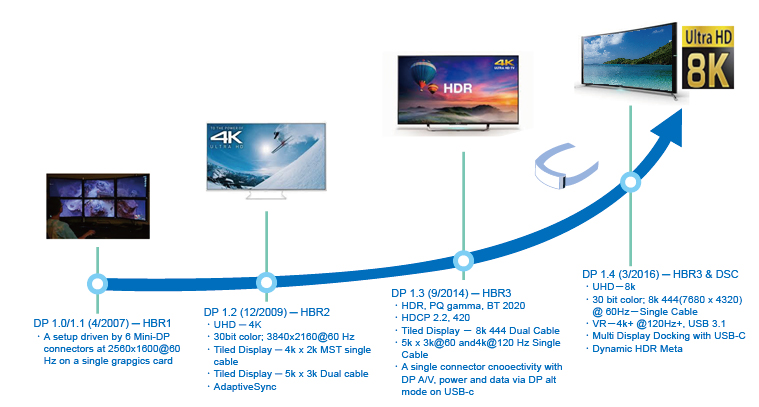

DisplayPort 1.4 can support for Display Stream Compression 1.2, Forward Error Correction, and extends the maximum number of inline audio channels to 32, its bandwidth of High Bit Rate 3 (HBR3) connections is 32.4Gpbs, it enables the connection of Displayport supported PC, Laptop or Graphics card to a high resolution (7680×4320 (8K) at 60Hz, 5120×2880 (5K) at 60Hz, 4096×2160 (4K) at 120Hz) Monitor or other Displayport supported device.

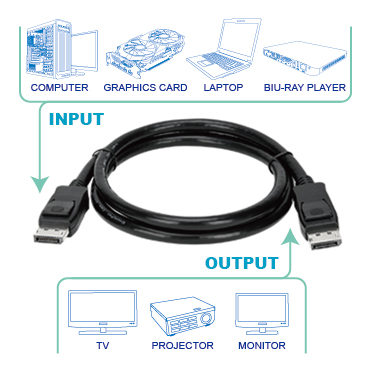

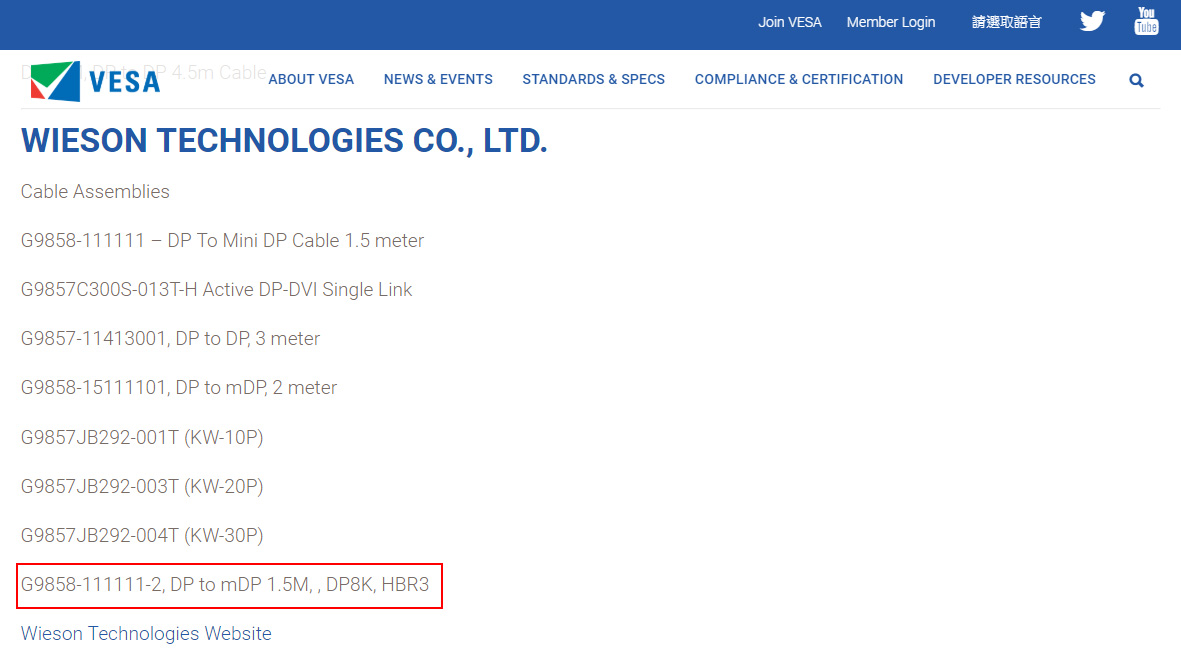

Wieson’s DP cable has been passed through rigorous test (DP 1.4 HBR3 Specification), it can reliably support 5K or 8K monitors, as well as high-performance 4K monitors, and is approved by VESA(https://vesa.org/).



 DP 1.4 HBR3 Cable Specification

Test Item SPEC/Requirement
Insertion Loss Fit at Nyquist Frequencies(Ilfit@nq)

≥-5.5dB at 1.35GHz

≥-8.5dB at 2.7GHz

≥-11.0dB at 4.05GHz
Integrated Multi-reflection(IMR) ≤ 0.0579 × ("Ilfit@nq" )^2 + 1.64 × Ilfit@nq – 23.23
TIntegrated Return Loss(IRL) ≤ 0.0336 × ("Ilfit@nq" )^2 + 1.28 × Ilfit@nq – 8.87
Integrated Crosstalk between DisplayPort Lanes(INEXT/IFEXT)

INEXT ≤ -23dB (up to 12GHz)

IFEXT ≤ -35dB (up to 12GHz)
Differential to Common Mode Conversion(SCD12/SCD21) ≤-17dB for 0.1~8.1GHz
Differential Impedance

DP Connector : 100±10Ω

mDP Connector : 100±15Ω

Cable : 100±5Ω
Intra-pair Skew ≤ 30ps
Passive Cable DC Signals Continuity detected for HPD、CONFIG1、CONFIG2 signal
Continuity not detected for DP_PWR signal



DP 1.4 Product Features：

  • DisplayPort 1.4 compliant, transmit up to 32.4Gbs bandwidth (HBR3)
  • High Resolution Support for 7680×4320 (8K) at 60Hz, 5120×2880 (5K) at 60Hz, 4096×2160 (4K) at 120Hz and two 3840×2160 at 120Hz
  • Support for Display stream compression (DSC) 1.2, support for forward error Correction
  • Support for up to 32 inline audio channels
  • Downwards compatible to older DisplayPort standards
    ( DisplayPort 1.2)
