WiFi 6 antenna – the rapidest antenna Wieson provided
WiFi 6 antenna – the rapidest antenna Wieson provided
The world's top three motherboard brands use the WiFi 6 (802.11ax) antenna from Wieson for the latest generation product. WiFi 6 (802.11ax) can support both 2.5G/5 GHz bands and down. Support for 802.11a/b/g/n/ac.

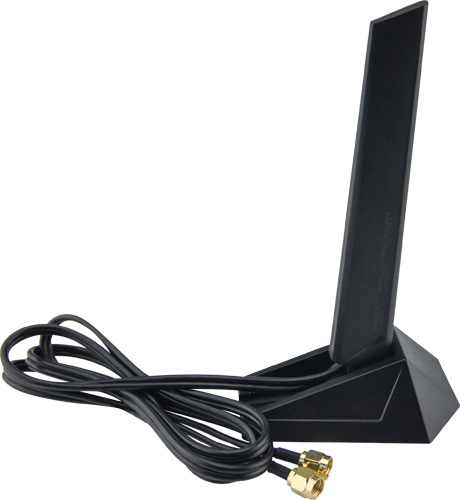

Minimalist antenna design, with a movable black base, users can easily put the antenna anywhere without space limited.
Wieson technology provides you any type any kinds of antennas!
Specification
| Item | Operating Frequency(GHz) 2.4-2.5 |
Operating Frequency(GHz) 5.15-5.85 |
|---|---|---|
| Bandwidth | 100 MHz (Min.) | 700MHz (Min.) |
| Return Loss | -10 dB (Max) | -10 dB (Max) |
| Polarization | Linear | Linear |
| Azimuth Bandwidth | Omni-directional | Omni-directional |
| Peak Gain | 2.1dBi (Max) | 3.56dBi (Max) |
| Impedance | 50Ω | 50Ω |
| Material | PCB | PCB |
| Maximum Power | 1W | 1W |
| V.S.W.R | 2 : 1 | 2 : 1 |
| Radiation | Omni directional | Omni directional |
| Efficiency | >50% | >60% |
| Connector | SMA | SMA |
| Cable type | RG-174 | RG-174 |
| Operating Temperature | -10~60℃ | -10~60℃ |
| Storage temp | -10~70℃ | -10~70℃ |
| Cable loss(1M) | 2dB | 3.5dB |
