AC2810-04/AC4285-03

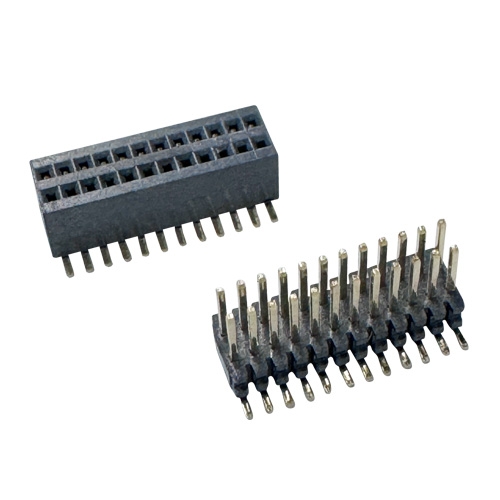

High Speed Header AC2810-04/AC4285-03

High Speed Pin Header & Female Header

0.8x1.2mm Dual Row Vertical SMT Type

Meets USB 3.2 Gen 1 & PCIe 4.0

  • Orientation Vertical
  • PCB Mounting Style SMT
    Mating Height 5.1mm
    Number of contacts 2x2~2x25

Product Drawing

Product Description

• Product series features high speed data rate USB3.2 Gen 1 and PCIe 4.0.
• Outstanding design capability to develop innovative new products in the High Speed Header connector series.

Applications

• Cam Module
• RF Module
• Portable game
• Portable music player
• Wireless Product
• Smart TV
