4U server series

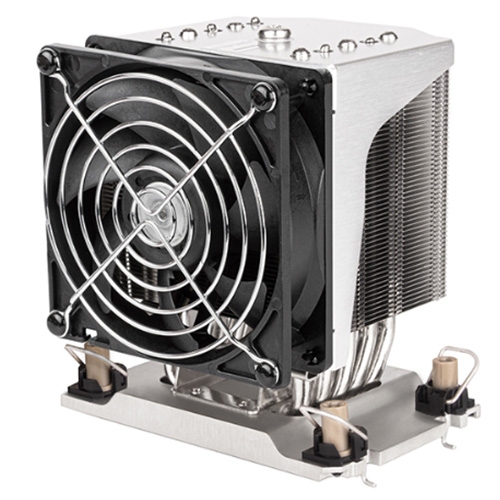

4U Active Thermal Module
Support for CPU Intel LGA4710/4677
The fan with PWM Function(turn 90 degrees clockwise)
Intel Xeon 6 Sierra Forest-SP, Granite Rapids P-Core, Intel Xeon Sapphire Rapids
Compliance with Sver/Workstation application
Specifications
| No. | Item | Content |
|---|---|---|
| 1 | Model no. | AT0003-4710-4UAT |
| 2 | Dimension | 105 x 118 x 126.5 (mm) |
| 3 | Net weight | 766 g |
| 4 | Ball Bearing | NBRX Bearing |
| 5 | Fan Speed (Max) | 4700 RPM |
| 6 | Performance _TDP | 350 Watts |
| 7 | Compsition | AL+Cu Base, AL FIN, Heat pipe |
