4U server series

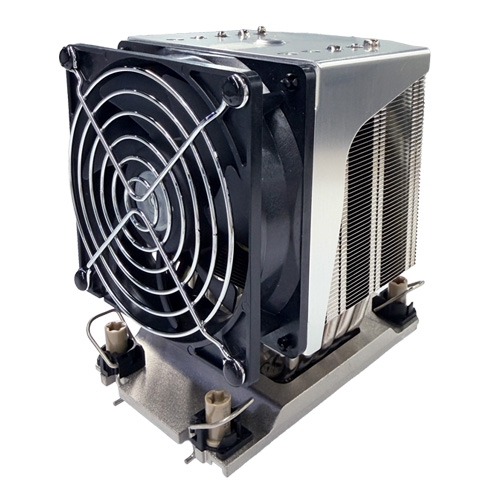

4U Active Thermal Module
Support for Intel LGA4710/4677, Side-blower Fan with PWM Function,
Intel Xeon 6 Sierra Forest-SP, Granite Rapids P-Core, Intel Xeon Sapphire Rapids
Compliance with Server/Workstation application
Specifications
| No. | Item | Content |
|---|---|---|
| 1 | Model no. | AT0003-4710-4UA |
| 2 | Dimension | 82.5 x 118 x 126.5 (mm) |
| 3 | Net weight | 754 g |
| 4 | Ball Bearing | NBRX Bearing |
| 5 | Fan Speed (Max) | 4,700 RPM |
| 6 | Performance _TDP | 350 Watts |
| 7 | Composition | AL+Cu Base, AL FIN, Heat pipe |
Download Drowing
Please enter your E-mail to download drowing, thanks!
