1U server series

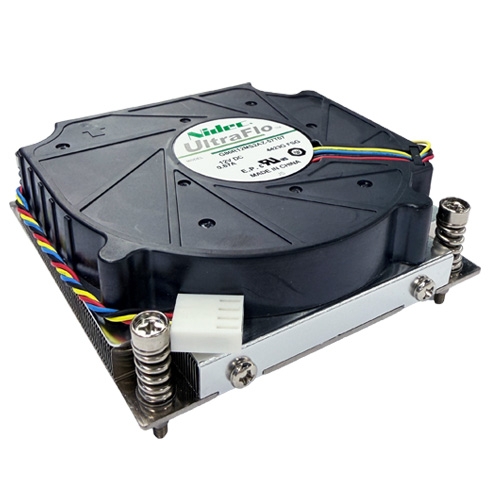

1U Active Thermal Module
Support for Intel LGA1851/1700 Socket, Blower Fan with PWM Function
Intel CORE, Alder Lake, Raptor Lake, Arrow Lake
Compliance with Server/IPC application
Specifications
| No. | Item | Content |
|---|---|---|
| 1 | Model no. | AT0003-1851-1UA |
| 2 | Dimension | 90 x 90 x 28.2 (mm) |
| 3 | Net weight | 283 g |
| 4 | Ball Bearing | Dual Ball Bearing |
| 5 | Fan Speed (Max) | 5,400 RPM |
| 6 | Performance _TDP | CPU 120 Watts |
| 7 | Composition | AL+Cu Base, AL FIN, Heat pipe |
