AR7184-430312
PAL Connectors

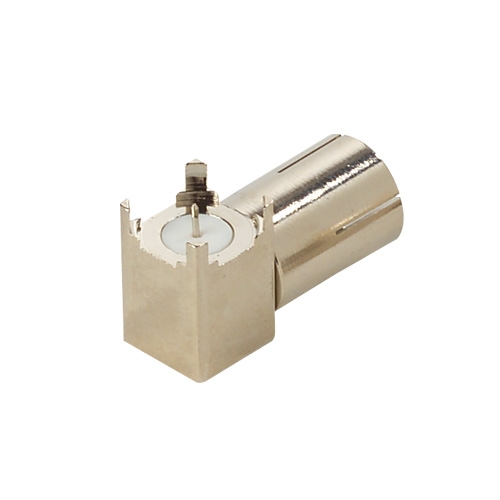

IEC(PAL) Jack R/A for PCB
- Type Subminiature
- Locking Style Screw threaded
- Cable Type Customized
Information
PAL Connector is commonly used in TV Antenna receiving equipment. It can be quickly push-on connection.
Applications
• TV sets
• CATV
• Antenna signal amplifiers
• FM / DAB-radio receivers
Specifications
| Technical Characteristics | |
|---|---|
| Impedance | 75Ω |
| Frequency Range | DC~1GHz |
| VSWR | 1.2 |
| Temperature Range | -55°C~165°C |
