Products

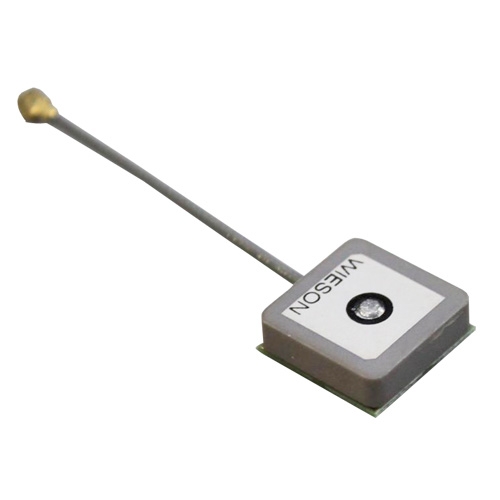

15*15*4 GPS Active Internal Antenna

GPS Active Internal Antenna Ceramic Components Active Antenna

  • Diemension(mm) 15*15*4
    Satellite GPS Only / GPS+GLONASS / GPS+BD
    VSWR 2.0 MAX.
    LNA Gaine 18dB
    Noise Figure 1.5dB Typical


Specifications

Diemension(mm) 15*15*4
Satellite GPS Only / GPS+GLONASS / GPS+BD
VSWR 2.0 MAX.
LNA Gaine 18dB
Noise Figure 1.5dB Typical
Voltage 3±0.3V
Coaxial Cable 0.81mm cable / 1.13mm cable / other
Connector I-PEX MHF Plug or other
