Internal Active Antenna

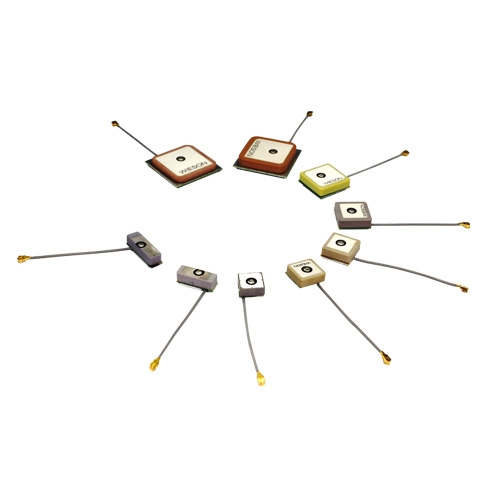

GPS Active Internal Antenna Ceramic Components Active Antenna

  • Diemension(mm) 25*25*4 / 25*25*2 / 18*18*4 / 18*18*2 / 15*15*4 / 15*15*2 / 12*12*4 / 12*12*4
    Satellite GPS Only / GPS+GLONASS / GPS+BD
    VSWR 2.0 MAX.
    LNA Gaine 18dB
    Noise Figure 1.5dB Typical


Specifications

Diemension(mm) 25*25*4 25*25*2 18*18*4 18*18*2 15*15*4 15*15*2 12*12*4 12*12*4
Satellite GPS Only / GPS+GLONASS / GPS+BD
VSWR 2.0 MAX.
LNA Gaine 18dB
Noise Figure 1.5dB Typical
Voltage 3±0.3V
Coaxial Cable 0.81mm cable / 1.13mm cable / other
Connector I-PEX MHF Plug or other
