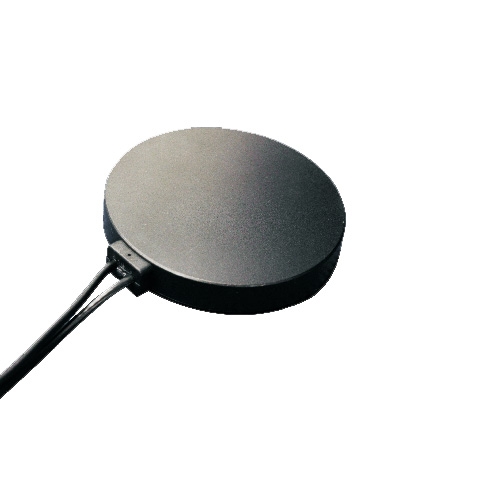

E-Type Combo GPS+GSM External Antenna
E-Type Combo GPS+GSM External Antenna
- Satellite GPS Only / GPS+GLONASS
VSWR 2.0 MAX.
LNA Gaine 28±3dB
Noise Figure 2.0dB Typical
Voltage 3.3V
Specifications |
||
|---|---|---|
| Frequency | GPS Only / GPS+GLONASS | 864~960MHz/ 1710/2170MHz |
| VSWR | 2.0 MAX. | 2.0 Typical |
| LNA Gaine | 28±3dB | - |
| Noise Figure | 2.0dB Typical | - |
| Voltage | 3.3V | - |
| Coaxial Cable | RG-174 | |
| Cable Length | 3M/ 5M or other | |
| Connector | SMA or other | |
