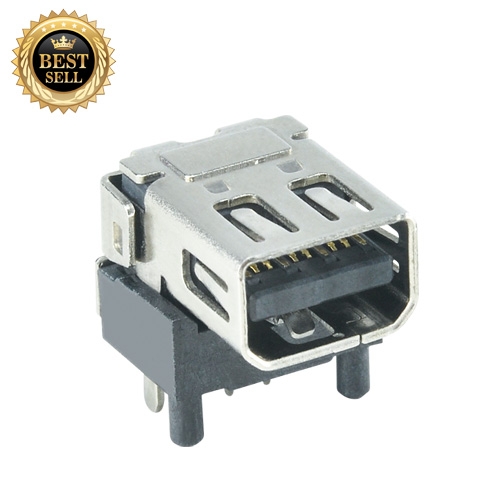

AC3167-04

Enhanced Mini DisplayPort 2.1

Enh Mini DP2.1, UHBR20
High Rise 6H, G/F

  • Orientation Right Angle
  • PCB Mounting Style Dual row SMT
    Voltage Rating 40V
    Current Rating 0.5A Max
    Durability 10,000 Cycles

DisplayPort™ (DP) standard specifies an open digital communications interface for use in both internal connections, such as interfaces within a PC or monitor, and external display connections. Suitable external display connections include interfaces between a PC and monitor or projector, between a PC and TV, or between a device such as a DVD player and TV display.

The next-generation DisplayPort™ (DP) specification is divided into three categories that reflect the Ultra High Bit Rates 40Gbps (10Gbps/lane), 54Gbps (13.5Gbps/lane), and 80Gbps (20Gbps/lane).

Product Description

Enhanced Mini DisplayPort 2.1,  6H
• Max. Bandwidth up to 80Gbps_(20Gbps/lane)
• Dual row SMT footprint
• EMI Spring design optional
• Supports backward copatibility with existing DisplayPort devices
• Mating force:4.5 kgf Max;Unmating force:1.0 kgf Min & 4.0 kgf Max
• Voltage Rating : 40V
• Current Rating : 0.5A Max
• Durability: 10,000 Cycles

Applications

• PCs
• External display interconnects
• TV monitors
• Panels
• Projectors
• Game consoles
• Mobile devices
• IPC
