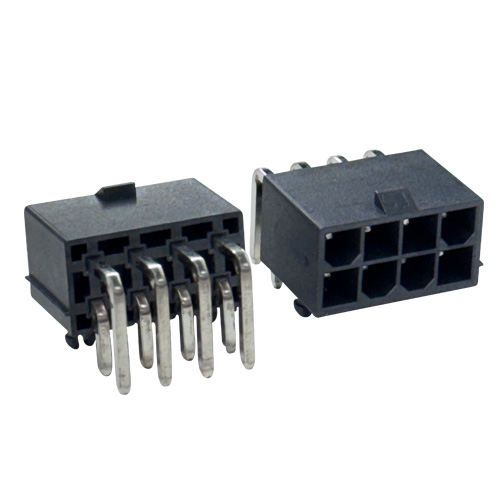

AC2211-12
Ptich 4.2mm
Right Angle DIP Type, Per Pin 12.5A Max, Tray
- Orientation Right Angle
- PCB Mounting Style Through Hole
Current rating Max 12.5A AC/DC
Product Description
| Current Derating Reference Information (A/PER PIN) | |||||||
|---|---|---|---|---|---|---|---|
| Circuit Size | 2 | 4 | 6,8 | 10 | 12 | 14,16,18 | 20,22,24 |
| 16 AWG | 12.5A | 12A | 10.5A | 10.5A | 9.0A | 8.5A | 8.0A |
| 18 AWG | 10.5A | 9.5A | 8.5A | 8.0A | 8.0A | 7.5A | 7.0A |
| 20 AWG | 9.0A | 9.0A | 7.0A | 6.5A | 6.5A | 6.0A | 5.5A |
| 22 AWG | 6.0A | 5.0A | 4.5A | 4.0A | 4.0A | 3.5A | 3.5A |
| 24 AWG | 5.5A | 5.0A | 4.5A | 4.0A | 3.5A | 3.5A | 3.0A |
| 26 AWG | 4.5A | 4.0A | 4.0A | 3.5A | 3.5A | 3.0A | 2.5A |
| 28 AWG | 4.0A | 3.5A | 3.0A | 3.0A | 3.0A | 2.5A | 2.0A |
• Housing: LCP(UL94V-0) Beige or Black / PA9T(UL94V-0) Beige
• Terminal: High Conductivity Copper
Applications
• GPU
• Server&Storage
• Desktop PC
• Power supply
