Products

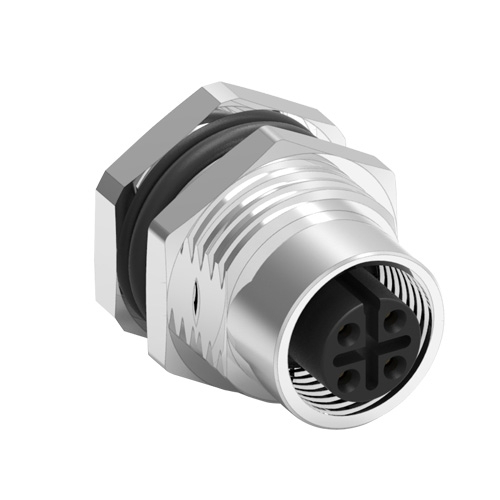

AC3402-18120300-00

M12 A Code  Panel Mount Connector

Female Type
Water Protection:IP67

  • No. of Contacts 4 Pin
  • PCB Mounting Style Front Fastened PCB Pin
    Mating Force 3~6 kgf.m
    Operting Temperture -40~85℃
    Contact Voltage Rating 30V AC/DC
    Contact Current Rating 1.5A

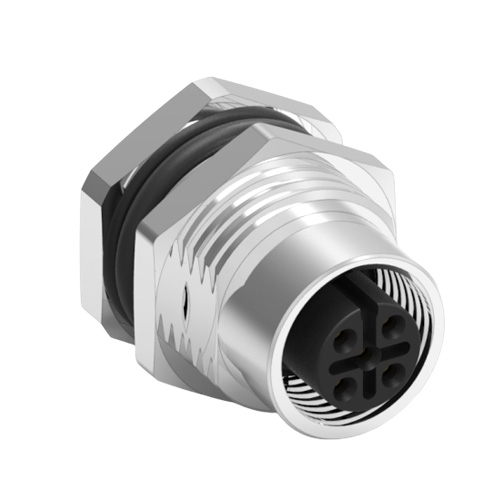

AC3402-18120400-00

M12 A Code  Panel Mount Connector

Female Type
Water Protection:IP67

  • No. of Contacts 5 Pin
  • PCB Mounting Style Front Fastened PCB Pin
    Mating Force 3~6 kgf.m
    Operting Temperture -40~85℃
    Contact Voltage Rating 30V AC/DC
    Contact Current Rating 1.5A

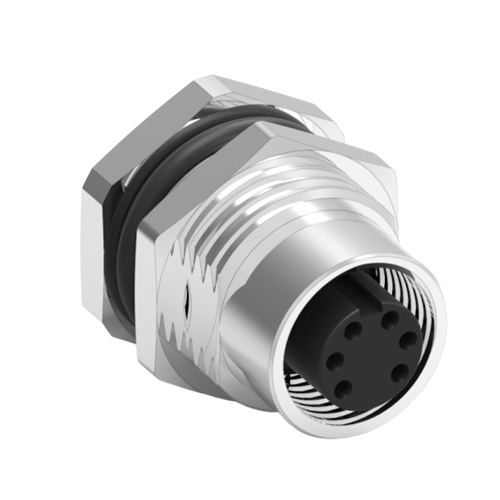

AC3402-18090100-00

M12 A Code  Panel Mount Connector

Female Type
Water Protection:IP67

  • No. of Contacts 6 Pin
  • PCB Mounting Style Front Fastened PCB Pin
    Mating Force 3~6 kgf.m
    Operting Temperture -40~85℃
    Contact Voltage Rating 30V AC/DC
    Contact Current Rating 1.5A

AC3402-18090300-00

M12 A Code  Solder Mount Connector

Female Type
Water Protection:IP67

  • No. of Contacts 7 Pin
  • PCB Mounting Style Front Fastened PCB Pin
    Mating Force 3~6 kgf.m
    Operting Temperture -40~85℃
    Contact Voltage Rating 30V AC/DC
    Contact Current Rating 1.5A

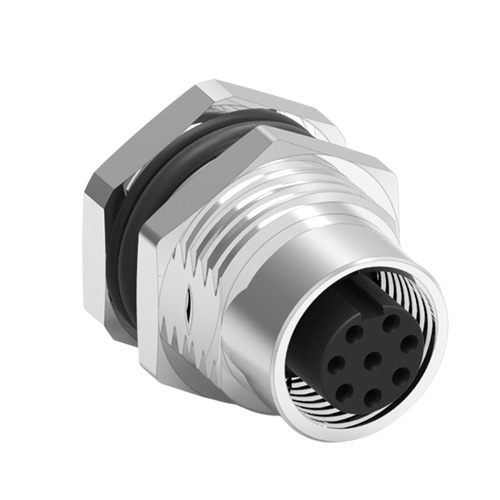

AC3402-18090400-00

M12 A Code  Panel Mount Connector

Female Type
Water Protection:IP67

  • No. of Contacts 8 Pin
  • PCB Mounting Style Front Fastened PCB Pin
    Mating Force 3~6 kgf.m
    Operting Temperture -40~85℃
    Contact Voltage Rating 30V AC/DC
    Contact Current Rating 1.5A

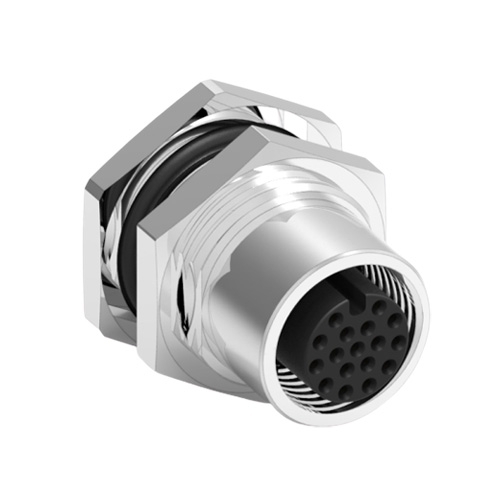

AC3402-18100000-00

M12 A Code  Solder Mount Connector

Female Type
Water Protection:IP67

  • No. of Contacts 17 Pin
  • PCB Mounting Style Front Fastened Solder Pin
    Mating Force 3~6 kgf.m
    Operting Temperture -40~85℃
    Contact Voltage Rating 30V AC/DC
    Contact Current Rating 1.5A

AC3402-18111XXX-00

M12 D Code Overmold Connector

Female Type
Water Protection:IP67

  • No. of Contacts 4 Pin
  • PCB Mounting Style Solder Overmold
    Mating Force 3~6 kgf.m
    Operting Temperture -40~85℃
    Contact Voltage Rating 250V AC/DC
    Contact Current Rating 4A

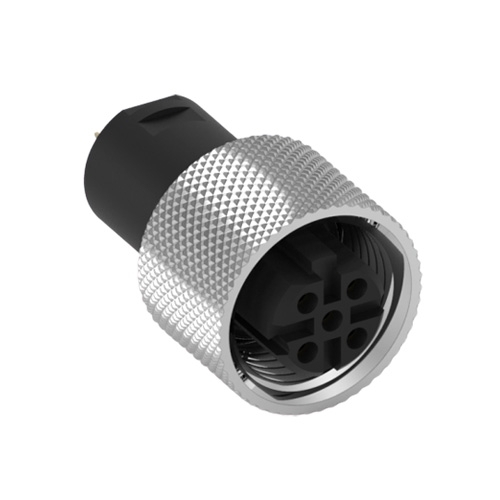

AC3402-18112XXX-00

M12 D Code Overmold Connector

Female Type
Water Protection:IP67

  • No. of Contacts 5 Pin
  • PCB Mounting Style Solder Overmold
    Mating Force 3~6 kgf.m
    Operting Temperture -40~85℃
    Contact Voltage Rating 250V AC/DC
    Contact Current Rating 4A

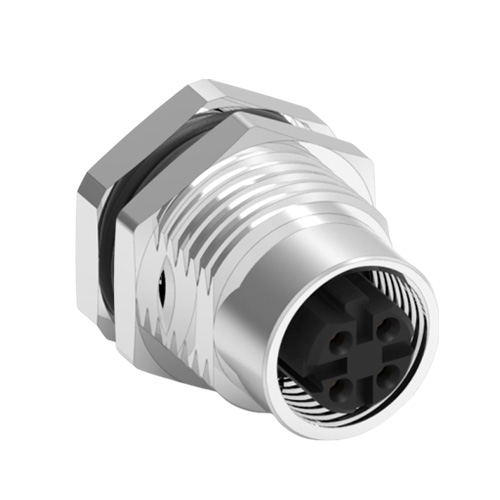

AC3402-180801XX-00

M12 D Code  Panel Mount Connector

Female Type
Water Protection:IP67

  • No. of Contacts 4 Pin
  • PCB Mounting Style Front Fastened Solder Pin
    Mating Force 3~6 kgf.m
    Operting Temperture -40~85℃
    Contact Voltage Rating 250V AC/DC
    Contact Current Rating 4A

AC3402-180802XX-00

M12 D Code  Panel Mount Connector

Female Type
Water Protection:IP67

  • No. of Contacts 5 Pin
  • PCB Mounting Style Front Fastened Solder Pin
    Mating Force 3~6 kgf.m
    Operting Temperture -40~85℃
    Contact Voltage Rating 250V AC/DC
    Contact Current Rating 4A
