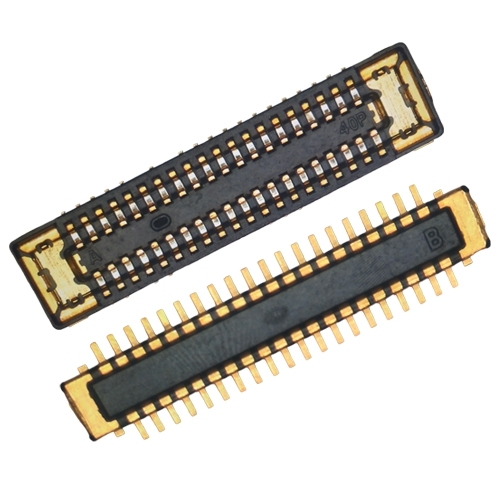

Pitch 0.4mm, SMD Type

Male 2853-02, Female 4298-02

High Speed Support:
PCIe4.0(16GT/s)
USB4 Gen3(40Gbps)
USB3.2 Gen2(10Gbps)
USB3.2 Gen2 Type C(10Gbps)

• Orientation Vertical
• PCB Mounting Style SMT
  Mating Height 0.9mm
  Number of contacts 24,40 pin

Pitch 0.5mm, SMD Type

Male G2850-57, Female G4296-56

High Speed Support:
PCIe4.0(16GT/s)
USB3.2 Gen2(10Gbps)
USB3.2 Gen2 Type C(10Gbps)

• Orientation Vertical
• PCB Mounting Style SMT
  Mating Height 1.5mm
  Number of contacts 40, 60 pin

Pitch 0.8mm, SMD Type

Male G2852-04, Female G4297-04

High Speed Support:
PCIe4.0(16GT/s)
USB4 Gen3(40Gbps)
USB3.2 Gen2(10Gbps)
USB3.2 Gen2 Type C(10Gbps)

• Orientation Vertical
• PCB Mounting Style SMT
  Mating Height 3.0mm
  Number of contacts 20, 30, 40 pin

Pitch 0.5mm, SMD Type

Male G2850-08, Female G4296-07

High Speed Support:
PCIe4.0(16GT/s)

• Orientation Vertical
• PCB Mounting Style SMT
  Mating Height 2.0mm
  Number of contacts 20, 30, 40, 60 pin

Pitch 0.5mm, SMD Type

Male G2850-02, Female G4296-02

High Speed Support:
PCIe4.0(16GT/s)
USB3.2 Gen2(10Gbps)

• Orientation Vertical
• PCB Mounting Style SMT
  Mating Height 1.5mm
  Number of contacts 20, 30 pin

Pitch 0.5mm, SMD Type

Male G2850-58, Female G4296-06

• Orientation Vertical
• PCB Mounting Style SMT
  Mating Height 4.0mm
  Number of contacts 60 pin

Pitch 0.5mm, SMD Type

Male G2850-09, Female G4296-07

• Orientation Vertical
• PCB Mounting Style SMT
  Mating Height 2.5mm
  Number of contacts 20, 60, 80 pin

Pitch 0.5mm, SMD Type

Male G2850-09, Female G4296-06

• Orientation Vertical
• PCB Mounting Style SMT
  Mating Height 3.0mm
  Number of contacts 10, 60 pin

Pitch 0.5mm, SMD Type

Male G2850-15, Female G4296-16

• Orientation Vertical
• PCB Mounting Style SMT
  Mating Height 7.0mm
  Number of contacts 20, 30, 80 pin

Pitch 0.5mm, SMD Type

Male G2850-15, Female G4296-06

• Orientation Vertical
• PCB Mounting Style SMT
  Mating Height 5.0mm
  Number of contacts 40, 60 pin
