MCIO 8X RE TO MCIO 8X RE

Signal integrity performance meets:
．25G Ethernet
．56GT/s PAM4 and 112G PAM4 (simulation data)
．PCIe Gen 3.0 / Gen4.0 / Gen 5.0 / Gen6.0
．SAS 3.0 / 4.0

• Wire Size (AWG) 30-34 AWG
  Connector Type MCIO
  Impedance  85/100 ohm
• Data Retes  56 GT/s PAM4, PCIe5.0 32GT/s

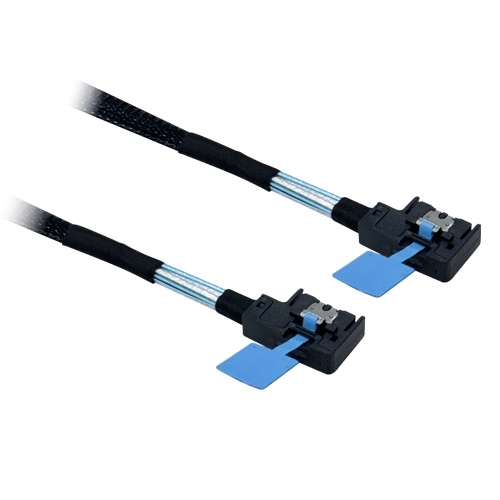

MCIO 4X RE TO MCIO 4X RE

Signal integrity performance meets:
．25G Ethernet
．56GT/s PAM4 and 112G PAM4 (simulation data)
．PCIe Gen 3.0 / Gen4.0 / Gen 5.0 / Gen6.0
．SAS 3.0 / 4.0

• Wire Size (AWG) 30-34 AWG
  Connector Type MCIO
  Impedance  85/100 ohm
• Data Retes  56 GT/s PAM4, PCIe5.0 32GT/s

MCIO 8X TO Riser card

Signal integrity performance meets:
．25G Ethernet
．56GT/s PAM4 and 112G PAM4 (simulation data)
．PCIe Gen 3.0 / Gen4.0 / Gen 5.0 / Gen6.0
．SAS 3.0 / 4.0

• Wire Size (AWG) 30-34 AWG
  Connector Type MCIO
  Impedance  85/100 ohm
• Data Retes  PCIe5.0 32GT/s

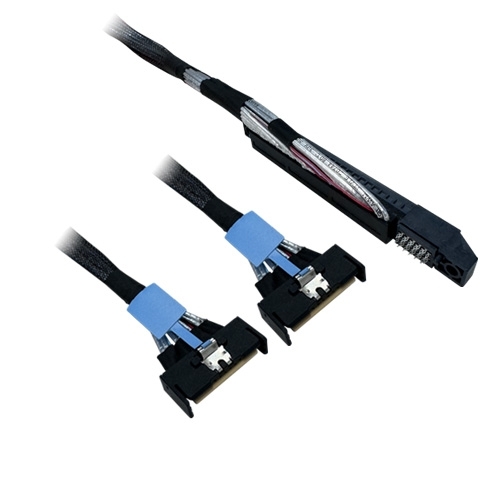

MCIO 8X TO DA-CEM

Signal integrity performance meets:
．PCIe Gen 3.0 / Gen4.0 / Gen 5.0

• Wire Size (AWG) 30-34 AWG
  Connector Type MCIO
  Impedance  85/100 ohm
• Data Retes  PCIe5.0 32GT/s
